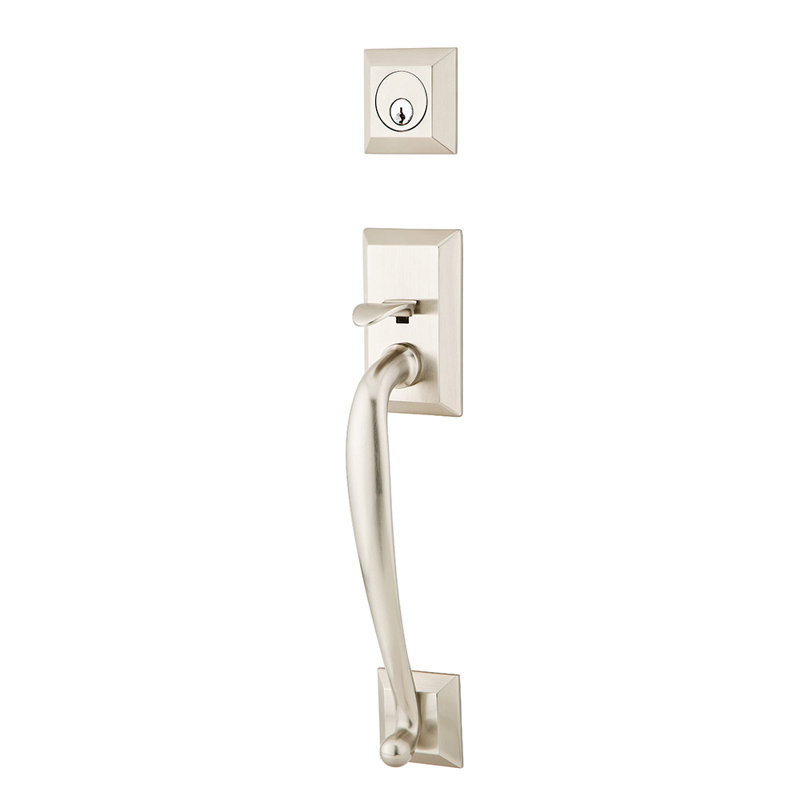

Emtek Franklin Double Cylinder Handleset

Finish:

Satin Nickel

Interior Knob/Lever Type:

Wembley Lever

Handing:

Left

Features

Function

Keyed

Material

Brass

Handleset Mount Style

One Piece

Lock Type

Tubular

Number of Lock Points

Number of Pins

Keyway Type

Pieces Included

Complete Entry Set

Latch Included

Yes

Handle Style

Lever

Series

Tubular Entry Set Collection

Number of Deadbolt Cylinders

Double Cylinder

Levers Included

Yes

Knob / Lever Included

Finish

Satin Nickel

App Enabled

Not App Enabled

Number of Knobs

Strike Style

Full lip, Deadbolt

Number of Keys Included

Warranty

Commercial Warranty

Product Warranty

Yes

Warranty Length

Lifetime

Full or Limited Warranty

Limited

Warranty Details 2

Mechanical warranty: Limited lifetime mechanical warranty. Finish warranty: Polished Brass-Lifetime and Polished Nickel-Lifetime finishes carry a Lifetime limited finish warranty. No finish warranty on Deep Burgundy, Flat Black Patina, Medium Bronze Patina, Polished White Bronze, Rust, Silver Patina, Tumbled White Bronze, and Unlacquered Brass finishes. All other finishes carry a five-year finish warranty.

Warranty Details

Limited lifetime warranty for the original owner.

Additional Features

Sold as complete set. Includes: One Thumbpress Assembly w/ Grip and Backplate; One Deadbolt; One Knob assembly w/ Backplate; Two 55-degree Latches; Strike; Keys; Installation Hardware; Door Prep Template
Tubular Thumbpress Entrysets will have a deadbolt, thumbpress and grip on the exterior side of the set and the interior side will be a deadbolt and a leverset. This Model is a Double Cylinder and will feature a key way on the exterior as well as a key way on the interior of the deadbolt portion.
Standard latch is for 2-3/8" backset. Set requires 2-1/8" bore standard door prep. Door prep template provided.
No handing designation required.
Base Material: Brass
Premium Quality - Quality that you can see and feel is built into each and every Emtek product. It’s about form and function working in beautiful harmony. Award-winning products, assembled to order in Los Angeles, CA.
Limited lifetime warranty for the original owner.

The Franklin is a transitional entry set with a comfortable grip and a classical beveled look. It utilizes the Quincy deadbolt and pairs well with our Quincy rosette, or the longer Quincy Sideplates. It's available in many finishes and can be upgraded to one of several keypad options.

Overall Dimensions

17.88'' H X 3.31'' W X 2.75'' D

Bore Hole Diameter

2.13''

Overall Product Weight

9.1 lb.

Edge Bore Diameter

1''

Compatible Door Thickness

1.625 - 1.875

Backset

2.375

Standard Door Preparation

Yes
