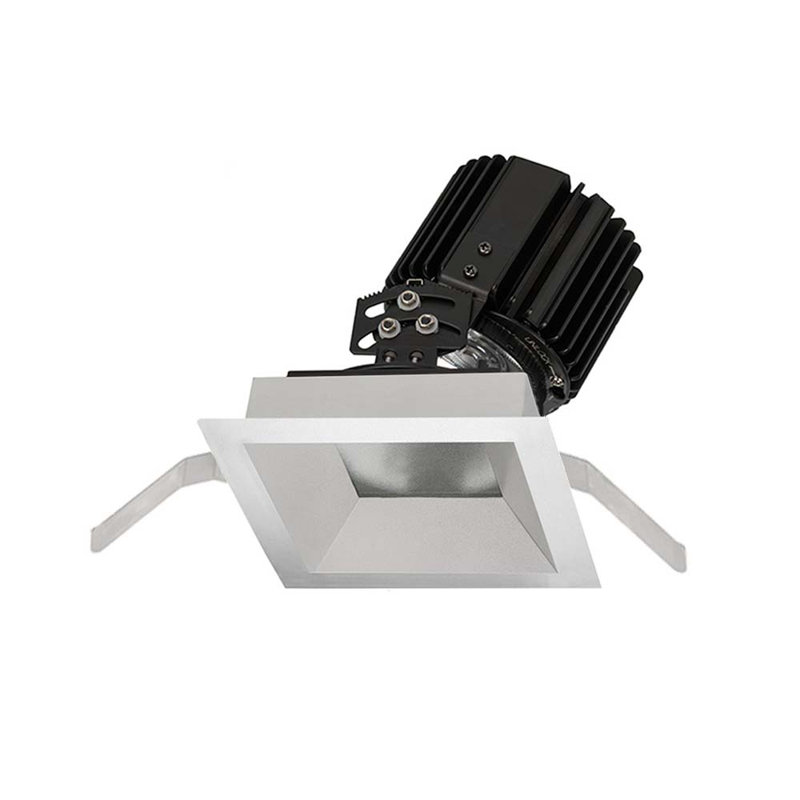

WAC Lighting Volta 5.75'' Remodel LED Retrofit Recessed Lighting Kit

Free Fast Delivery

Get it by Fri, May 15

43215

Volta is the quintessential high-performance LED architectural recessed downlight. Volta housings can be specified with one of three (15W, 25W, 36W) serviceable drivers to plan your project in accordance with energy and lighting requirements up to 3,000 lumens. Volta trims include a LED light engine with a replaceable high powered LED module. Tool less in field adjustable glare control and optic system can be used for louvers, lens and beam control.

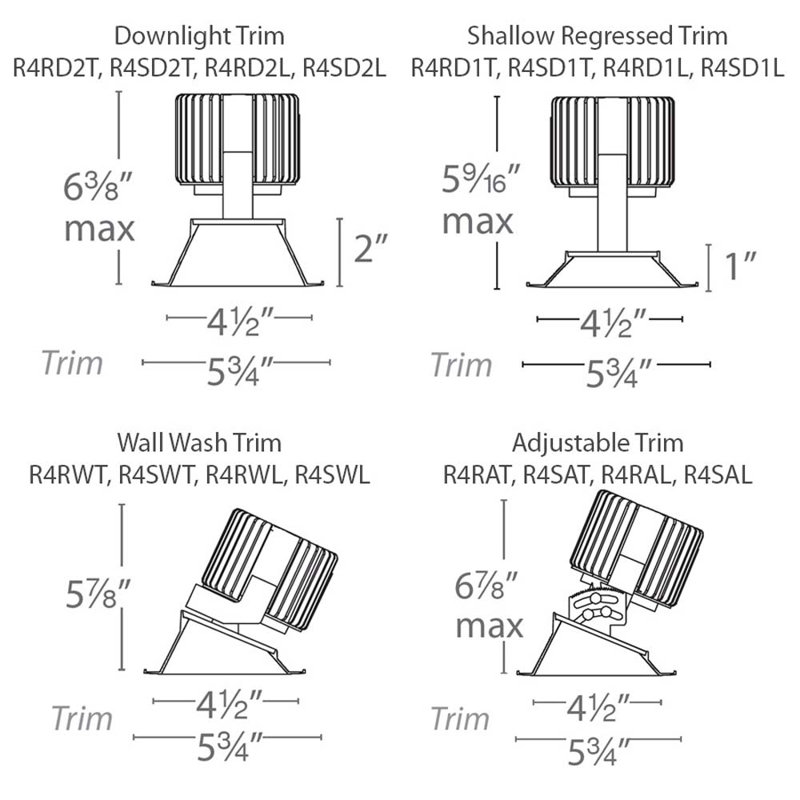

Overall Dimensions

6.88'' H X 5.75'' W

Overall Product Weight

2.7 lb.

Trim Width

5.75'' W

Maximum Cut Out Size

5.13''

Trim Size (Aperture)

5.75''

Trim Length

5.75'' L

Features

Product Type

LED Retrofit

Total Number of Pieces Included

Construction Type

Remodel

Trim Shape

Square/Rectangle

Integrated LED Brightness (Lumens)

1,345lm

Integrated LED Color Temperature

3,000K

Dry, Damp or Wet Location Rated

Wet

Airtight

Yes

Outdoor Use

Yes

Material

Metal

Housing Required

Yes

Dimmable

Yes

Adjustable Light Beam

Yes

Integrated LED

Yes

Bulb Not Included But Required

Voltage

277 Volt

Additional Features

Beam spread: Narrow 25
Volta trim includes LED light engine with replaceable high powered LED module
Comes with LED light engine narrow
Energy star certified and CEC title 24 compliant (Title 24 only in 90CRI version)
Smooth and continuous dimming to 1% with an electronic low voltage dimmer or 0-10V dimmer
Chicago plenum safety rating and emergency backup battery options
Can be driven with 15 W, 25 W or 36 W driver for varying lumen output
All volta trims are wet location standard
Compliant: Yes
ALA Compliant: Yes
Energy Star Compliant: Yes
Voltage Type: Line voltage
Installation Required: Yes
