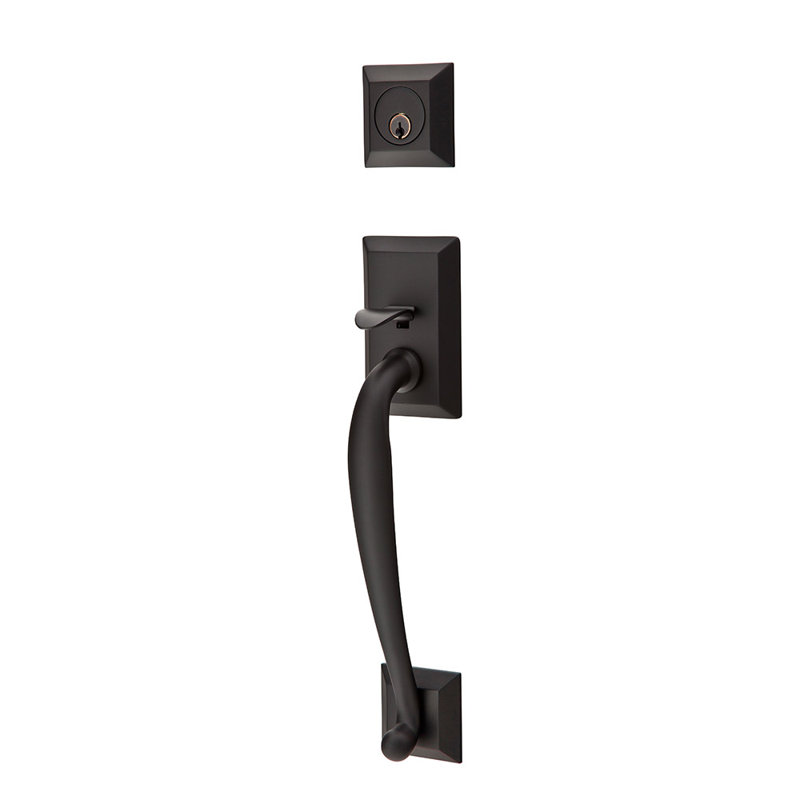

Emtek Franklin Sectional Single Cylinder Tubular Entryset & Reviews

The Franklin is a transitional entry set with a comfortable grip and a classical beveled look. It utilizes the Quincy deadbolt and pairs well with our Quincy rosette, or the longer Quincy Sideplates. It's available in many finishes and can be upgraded to one of several keypad options.

Customer Reviews

Rated 4.6 out of 5 stars.

9 Reviews

Showing 1-5 of 9 reviews

Filter by keyword

Most relevant

Sort By

Rated 3 out of 5 stars.

LaurenRidgefield, CT

Finish:Flat Black,

Handing:Reversible,

Interior Knob/Lever Type:Waverly Knob

From the listing, I thought you could mix and match the black exterior handle with a silver interior knob. That’s not the case, both came as black. It also took longer than normal to ship. We were replacing an existing handle and this product ended up being smaller on the outside than what we had, so you see marks on the door from the old handle. We need to sand the door down and repaint.

06/18/2020

Rated 5 out of 5 stars.

JackieShawnigan Lake, BC

Finish:Flat Black,

Handing:Left Handed,

Interior Knob/Lever Type:Mercury Lever

This is going to last a lifetime! It's so well made and beautiful, I wish that I had the money to put emtek hardware on all of my doors. I just hope that I ordered the right handle orientation, I found the diagrams a but confusing.

01/01/2020

Rated 5 out of 5 stars.

PaulMilton, MA

Finish:Flat Black,

Handing:Left Handed,

Interior Knob/Lever Type:Luzern Lever

Great solid handle

03/17/2021

Rated 4 out of 5 stars.

DannyCA

Finish:Oil Rubbed Bronze,

Handing:Right Handed,

Interior Knob/Lever Type:Turino Lever

Solid product

09/18/2019

Rated 5 out of 5 stars.

AlexandraHouston, TX

Finish:French Antique,

Handing:Reversible,

Interior Knob/Lever Type:Providence Knob

11/23/2025

Features

Product Type

Handle with Knob and Deadbolt

Function

Keyed

Material

Brass

Handleset Mount Style

Two Piece

Lock Type

Tubular

Number of Lock Points

Number of Pins

Keyway Type

Latch Included

Yes

Handle Style

Knob

Series

Tubular Entry Set Collection

Number of Deadbolt Cylinders

Single Cylinder

Knob / Lever Included

Yes

Power Source

No Power Source Required / Manual

Finish

French Antique

Number of Knobs

Strike Style

Full lip, Deadbolt

Number of Keys Included

Warranty

Commercial Warranty

Product Warranty

Yes

Warranty Length

Lifetime

Full or Limited Warranty

Limited

Warranty Details 2

Mechanical warranty: Limited lifetime mechanical warranty. Finish warranty: Polished Brass finish carries a Lifetime limited finish warranty; No finish warranty on Flat Black; All other finishes carry a five-year finish warranty.

Warranty Details

Limited lifetime warranty for the original owner.

Additional Features

Sold as complete set. Includes: One Thumbpress Assembly w/ Grip and Backplate; One Deadbolt; One Knob assembly w/ Backplate; Two 55-degree Latches; Strike; Keys; Installation Hardware; Door Prep Template
Tubular Thumbpress Entrysets will have a deadbolt, thumbpress and grip on the exterior side of the set and the interior side will be a deadbolt and a leverset. This Model is a Single Cylinder and will feature a key way on the exterior and a thumbturn on the interior of the deadbolt portion.
Standard latch is for 2-3/8" backset. Set requires 2-1/8" bore standard door prep. Door prep template provided.
No handing designation required.
Base Material: Brass
Premium Quality - Quality that you can see and feel is built into each and every Emtek product. It’s about form and function working in beautiful harmony. Award-winning products, assembled to order in Los Angeles, CA.
Limited lifetime warranty for the original owner.

Overall Dimensions

17.88'' H X 3.31'' W X 2.75'' D

Backset

2.375

Compatible Door Thickness

1.75 - 1.875

Edge Bore Diameter

1''

Bore Hole Diameter

2.13''

Standard Door Preparation

Yes

Overall Product Weight

9.1 lb.

Finish:

French Antique

Interior Knob/Lever Type:

Norwich Knob

Handing:

Reversible
