WAC Lighting Volta 5.75'' Remodel LED Retrofit Recessed Lighting Kit

Volta is the quintessential high-performance LED architectural recessed downlight. Volta housings can be specified with one of three (15W, 25W, 36W) serviceable drivers to plan your project in accordance with energy and lighting requirements up to 3,000 lumens. Volta trims include a LED light engine with a replaceable high powered LED module. Tool less in field adjustable glare control and optic system can be used for louvers, lens and beam control.

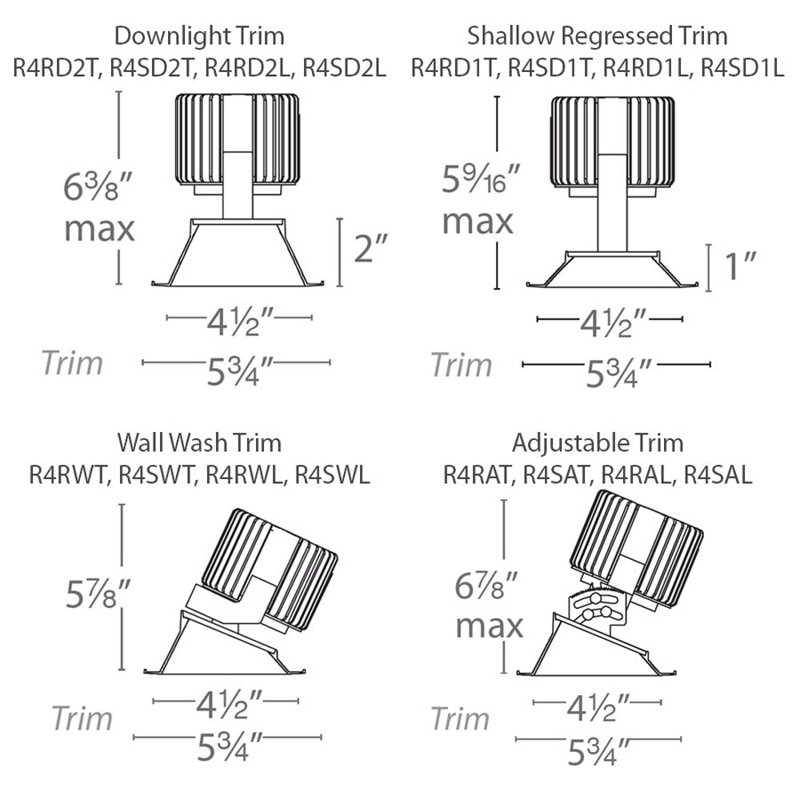

Overall Dimensions

6.39'' H X 5.75'' W

Overall Product Weight

1.98 lb.

Trim Outer Diameter

5.75''

Trim Size (Aperture)

5.75''

Features

Product Type

LED Retrofit

Total Number of Pieces Included

Construction Type

Remodel

Trim Shape

Circle

Trim Style

Shower

Dry, Damp or Wet Location Rated

Wet

Material

Metal

Housing Required

Yes

Voltage

277 Volt

Bulb / Light Type

Integrated LED

General Features

Airtight

Built-In Features

Dimmable, Adjustable Light Beam

Location

Indoor / Outdoor

Free Fast Delivery

Get it by Sat, Aug 8

43215

Design Details

Built-in LED Light

Dry, Damp or Wet Location Rated: Wet

Dimmable

Additional Features

Beam spread: Spot 15
Volta trim includes LED light engine with replaceable high powered LED module
Comes with LED light engine spot
Energy star certified and CEC title 24 compliant (Title 24 only in 90CRI version)
Smooth and continuous dimming to 1% with an electronic low voltage dimmer or 0-10V dimmer
Invisible trim
Chicago plenum safety rating and emergency backup battery options
Can be driven with 15 W, 25 W or 36 W driver for varying lumen output
All volta trims are wet location standard
Compliant: Yes
ALA Compliant: Yes
Energy Star Compliant: Yes
Voltage Type: Line voltage
Installation Required: Yes
Aperture size: 4.5"
