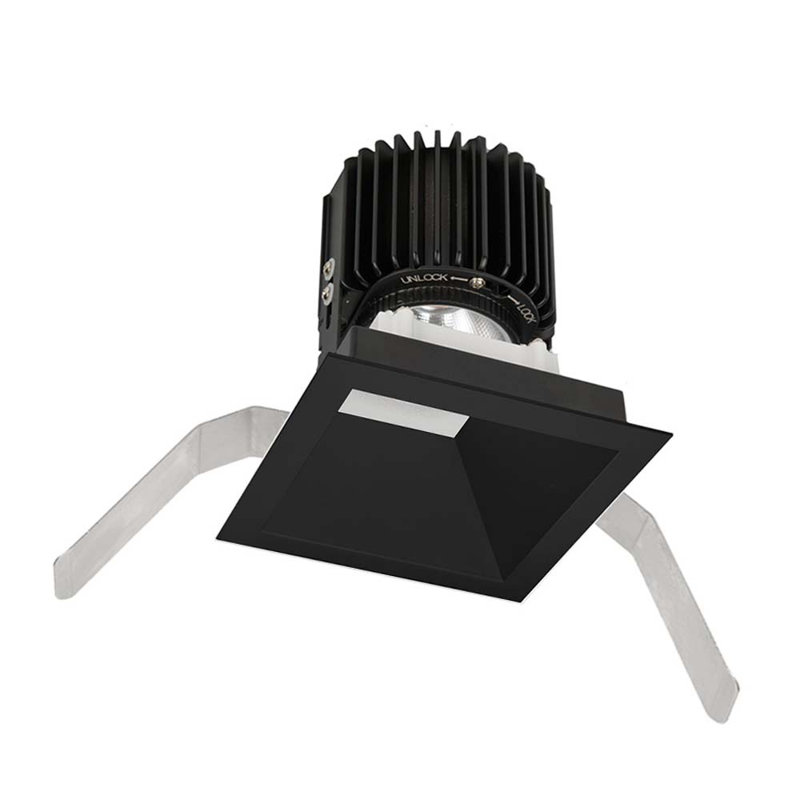

WAC Lighting Volta 5.75" Remodel LED Retrofit Recessed Lighting Kit

Volta is the quintessential high-performance LED architectural recessed downlight. Volta housings can be specified with one of three (15W, 25W, 36W) serviceable drivers to plan your project in accordance with energy and lighting requirements up to 3,000 lumens. Volta trims include a LED light engine with a replaceable high powered LED module. Tool less in field adjustable glare control and optic system can be used for louvers, lens and beam control.

Additional Features

Shape: Square
Beam spread: Spot 15
Comes with LED light engine spot
Energy star certified and CEC title 24 compliant (Title 24 only in 90CRI version)
Smooth and continuous dimming to 1% with an electronic low voltage dimmer or 0-10V dimmer
Chicago plenum safety rating and emergency backup battery options
Can be driven with 15 W, 25 W or 36 W driver for varying lumen output
Standards: ETL and cETL wet location listed
All volta trims are wet location standard
Lumens: 712-1466
Safety rating: Wet
ALA Compliant: Yes
cETL Certified: Yes
Energy Star Compliant: Yes
Title 24 Compliant: Yes
Voltage Type: Line voltage
Installation Required: Yes
Aperture size: 4.5"

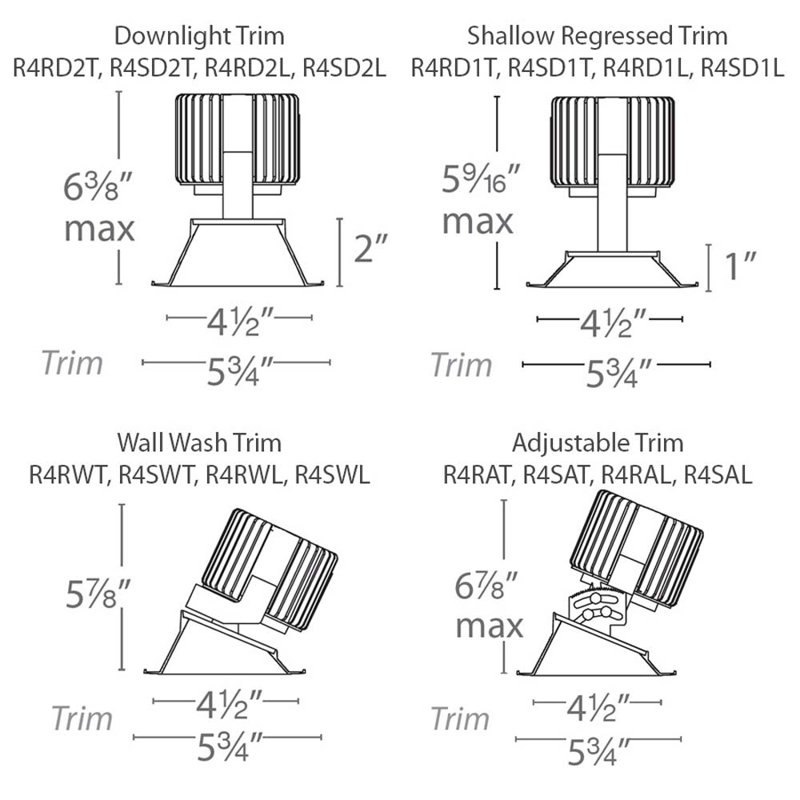

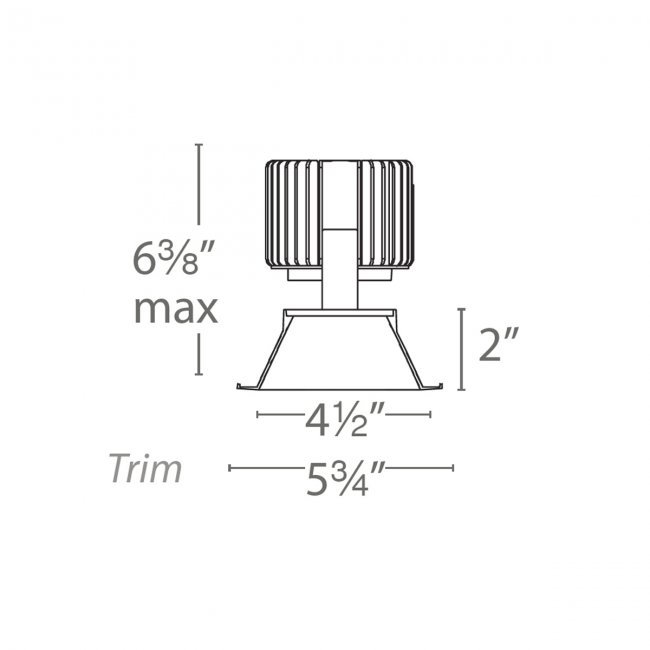

Overall Dimensions

6.39'' H X 5.75'' W

Trim Size (Aperture)

5.75''

Overall Product Weight

2.43 lb.

Features

Product Type

LED Retrofit

Total Number of Pieces Included

Construction Type

Remodel

Trim Shape

Square/Rectangle

Trim Style

Adjustable

Dry, Damp or Wet Location Rated

Wet

Material

Metal

Housing Required

Yes

Voltage

277 Volt

Color Temperature Options

4000K

Bulb / Light Type

Integrated LED

Brightness (Lumens)

1,466lm

General Features

Airtight

Built-In Features

Dimmable

Location

Indoor / Outdoor
