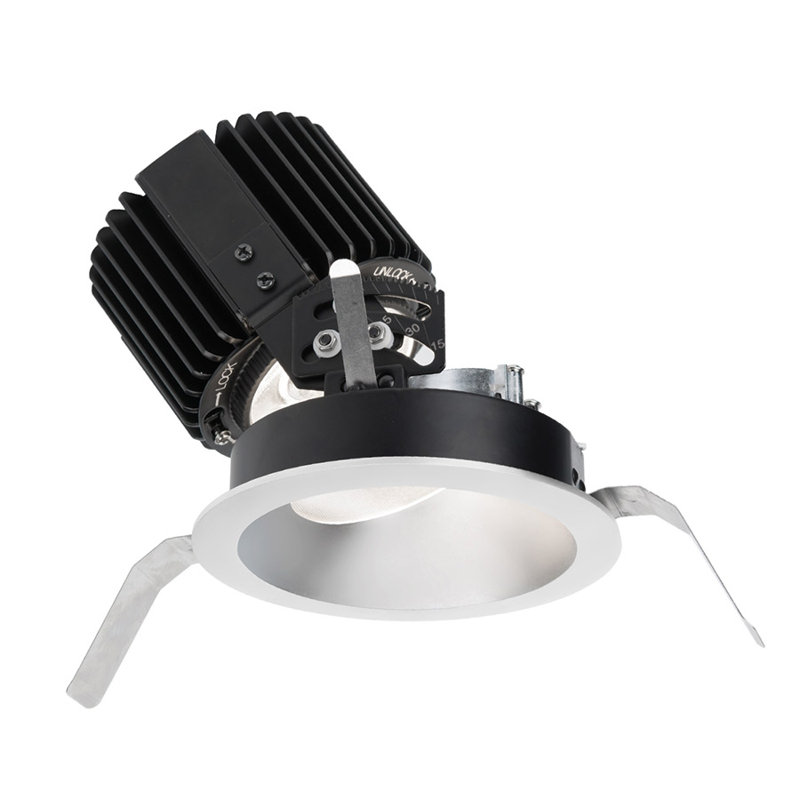

WAC Lighting Volta 5.75" Remodel LED Retrofit Recessed Lighting Kit

Free Fast Delivery

Get it by Fri, Aug 14

43215

Volta is the quintessential high-performance LED architectural recessed downlight. Volta housings can be specified with one of three (15W, 25W, 36W) serviceable drivers to plan your project in accordance with energy and lighting requirements up to 3,000 lumens. Volta trims include a LED light engine with a replaceable high powered LED module. Tool less in field adjustable glare control and optic system can be used for louvers, lens and beam control.

Features

Product Type

LED Retrofit

Total Number of Pieces Included

Construction Type

Remodel

Trim Shape

Circle

Trim Style

Shower

Dry, Damp or Wet Location Rated

Wet

Material

Metal

Housing Required

Yes

Voltage

277 Volt

Color Temperature Options

3500K

Bulb / Light Type

Integrated LED

Brightness (Lumens)

2,299lm

General Features

Airtight

Built-In Features

Dimmable, Adjustable Light Beam

Location

Indoor / Outdoor

Additional Features

Shape: Round
Beam spread: Flood 45
Comes with LED light engine flood
Energy star certified and CEC title 24 compliant (Title 24 only in 90CRI version)
Smooth and continuous dimming to 1% with an electronic low voltage dimmer or 0-10V dimmer
Chicago plenum safety rating and emergency backup battery options
Can be driven with 15W, 25W or 36W driver for varying lumen output
Lumens: 1118-2299
Safety rating: Wet
Voltage Type: Line voltage
Installation Required: Yes
ALA Compliant: Yes
cETL Certified: Yes
Energy Star Compliant: Yes
Standards: ETL and cETL wet location listed
Title 24 Compliant: Yes
Aperture size: 4.5"

Overall Dimensions

6.88'' H X 5.75'' W

Trim Size (Aperture)

5.75''

Overall Product Weight

2.27 lb.
