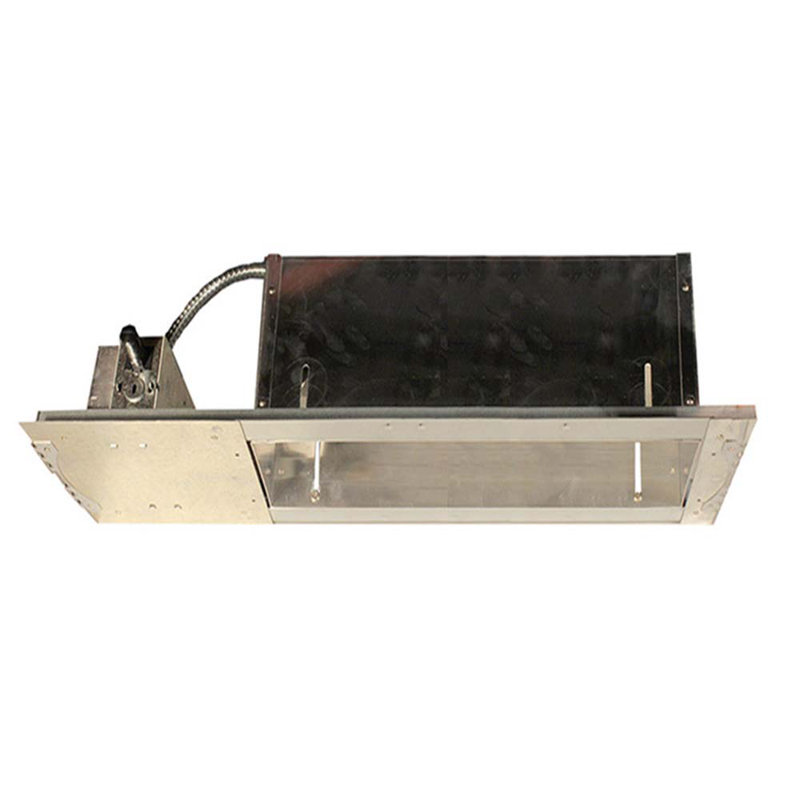

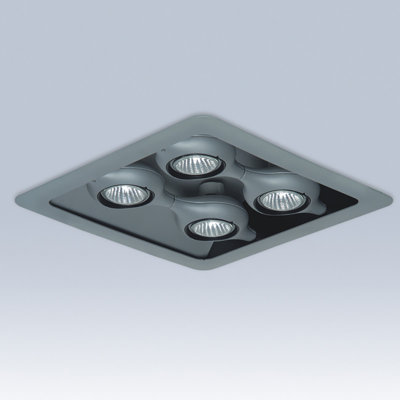

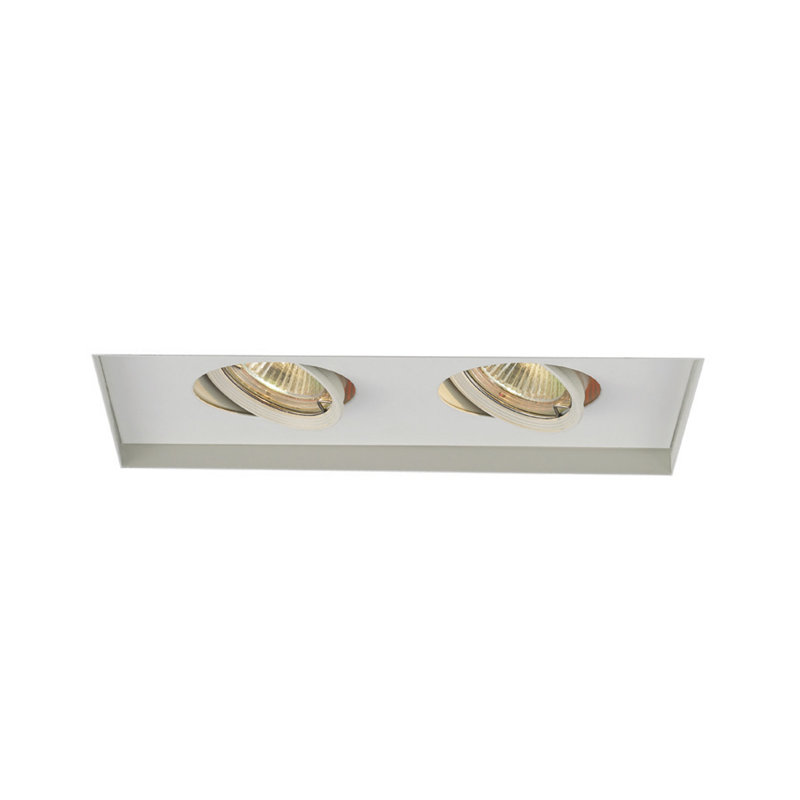

Low voltage multiple spots are ideal for perimeter lighting applications in smaller scale retail, commercial and hospitality environments. Square single light gimbal ring style adjustable recessed fixture, available with flanged trim or invisible trim, designed to sit flush with the ceiling for a clean architectural look. Housing, trim, and lamp are sold separately.

Additional Features

Multiple spots offer individual adjustable lighting elements with a minimal extension below the ceiling pane
30º Aiming capabilities and 360º rotation on each element
Track lighting is not universal. W.A.C. Lighting products can only be used with W.A.C. lighting products or the warranty is void.
Commercial only certifications: Yes
It is recommended to use an electronic low voltage (ELV) dimming: 100-10%
A soft start to prolong lamp life
Electronic short circuit and overload protection with automatic reset

Features

Product Type

Multi-Spotlight

Total Number of Pieces Included

Construction Type

New Construction

Insulation Type

Non-IC Rated (For Non-Insulated Ceilings Only)

Trim Shape

Square/Rectangle

Trim Style

Adjustable

Dry, Damp or Wet Location Rated

Damp

Material

Metal

Housing Required

Yes

Transformer Required

Yes

Maximum Wattage (Per Bulb)

50 Watt

Number of Lights

Voltage

12 Volt

Imported

Yes

Finish

White

Pieces Included

Housing, Transformer

Built-In Features

Dimmable, Adjustable Light Beam

Compatible With

Sloped Ceiling

Customer Reviews

Rated 5 out of 5 stars.

1 Review

Showing 1-1 of 1 reviews

Filter by keyword

Most relevant

Sort By

Rated 5 out of 5 stars.

ChaiwatOrlando, FL

02/04/2017

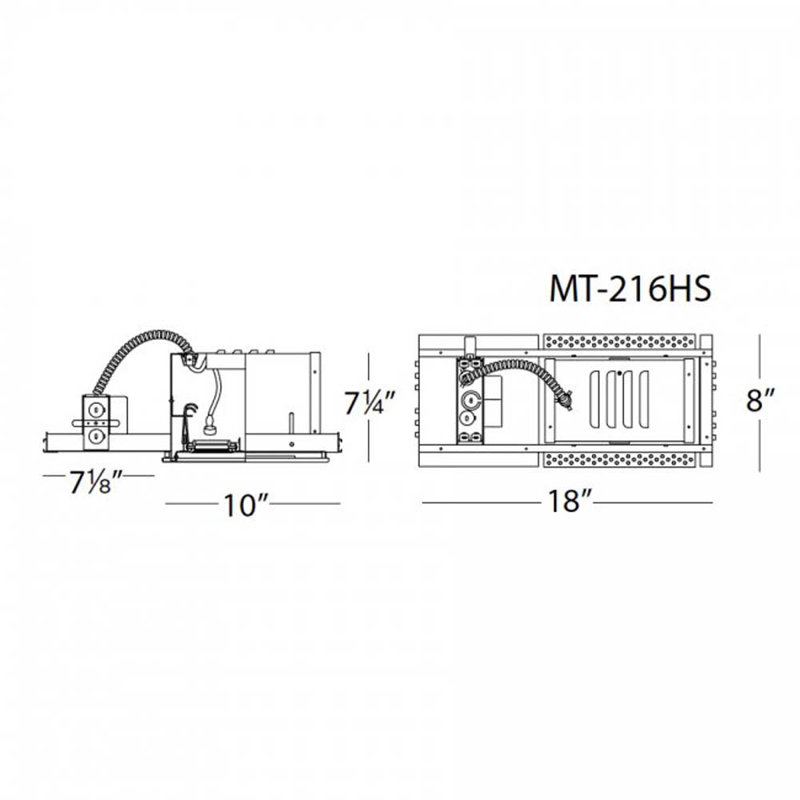

Overall Dimensions

7.25'' H X 18'' W

Ceiling Cut Out Height - Top to Bottom

7.25'' H

Overall Product Weight

0.05 lb.

Trim Width

8'' W

Trim Size (Aperture)

18''

Trim Length

18'' L
