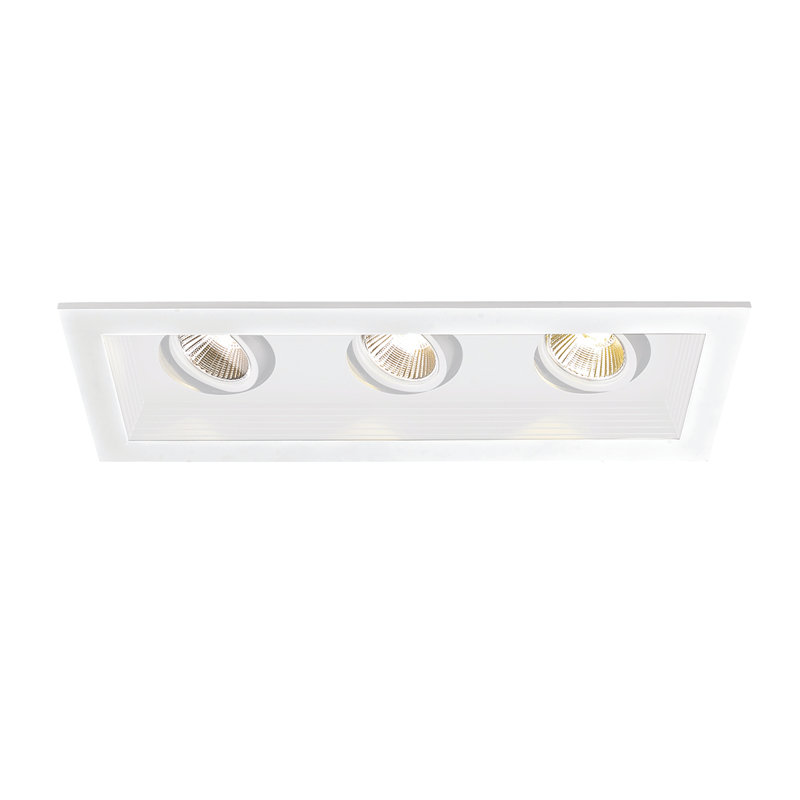

WAC Lighting LED Multi-Spotlight

Additional Features

Eco friendly
1 Complete unit includes housing and trim
Dimming: 10% - 100 %
Bulb type: 11W LED bulb

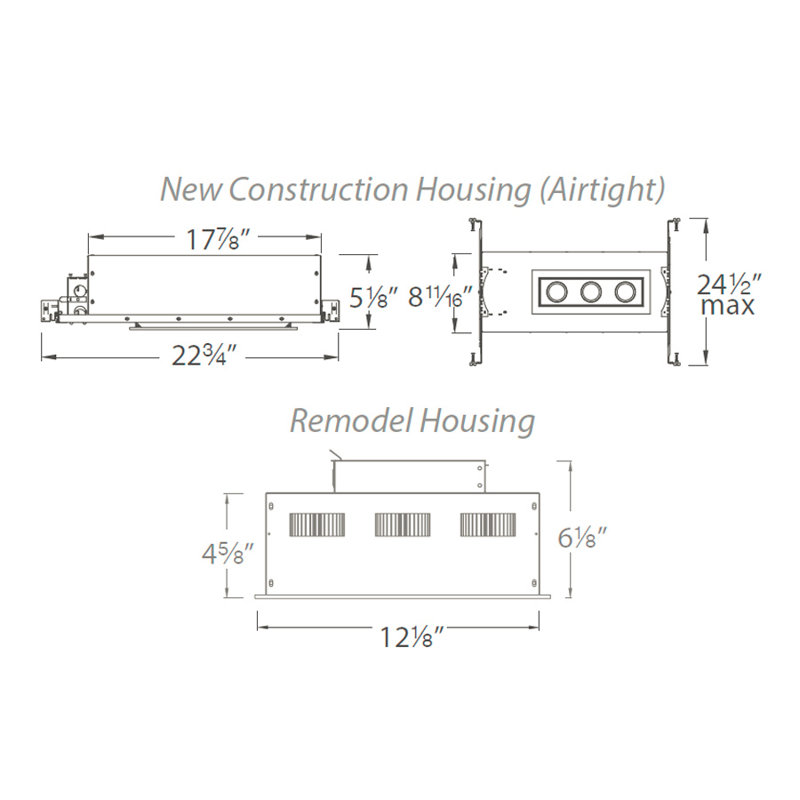

Fixture depth - front to back: 24.5"
Driver concealed within the fixture
1/2" Of sheetrock should be considered when planning for housing installation
The trim, housing, and junction box are 20 gauge steel. Frame and hanger bars are heavy gauge galvanized steel.

Features

Product Type

Multi-Spotlight

Total Number of Pieces Included

Construction Type

New Construction

Insulation Type

Non-IC Rated (For Non-Insulated Ceilings Only)

Trim Shape

Square/Rectangle

Trim Style

Adjustable

Dry, Damp or Wet Location Rated

Damp

Material

Metal

Housing Required

Yes

Transformer Required

Maximum Wattage (Per Bulb)

33 Watt

Number of Lights

Voltage

277 Volt

Imported

Yes

Finish

White

Pieces Included

Housing

Bulb / Light Type

Integrated LED

Integrated LED Color Rendering Index (CRI)

General Features

Airtight

Built-In Features

Dimmable, Adjustable Light Beam

Overall Dimensions

6.13'' H X 23'' W

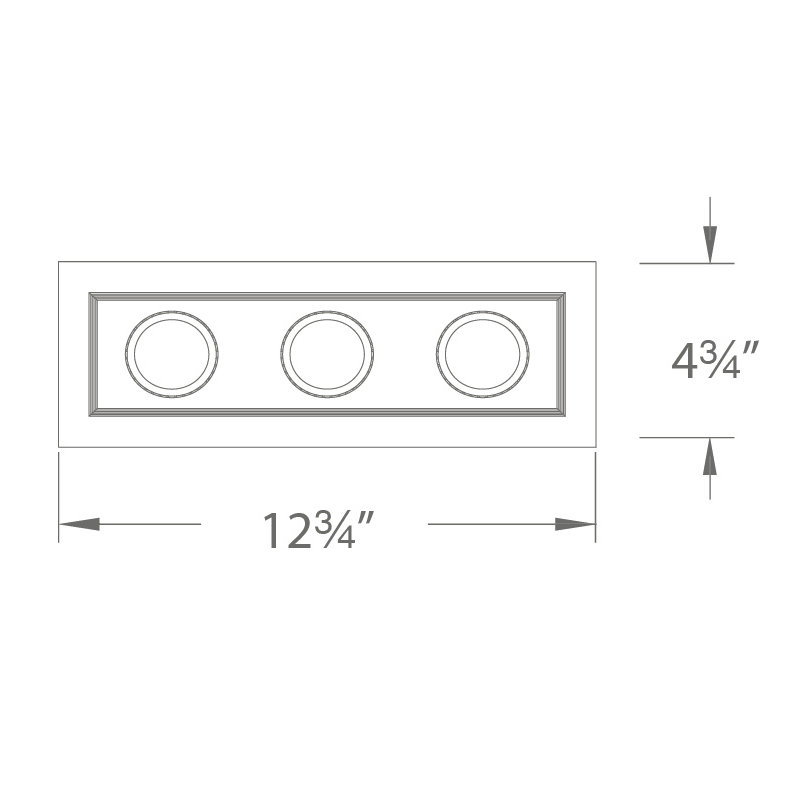

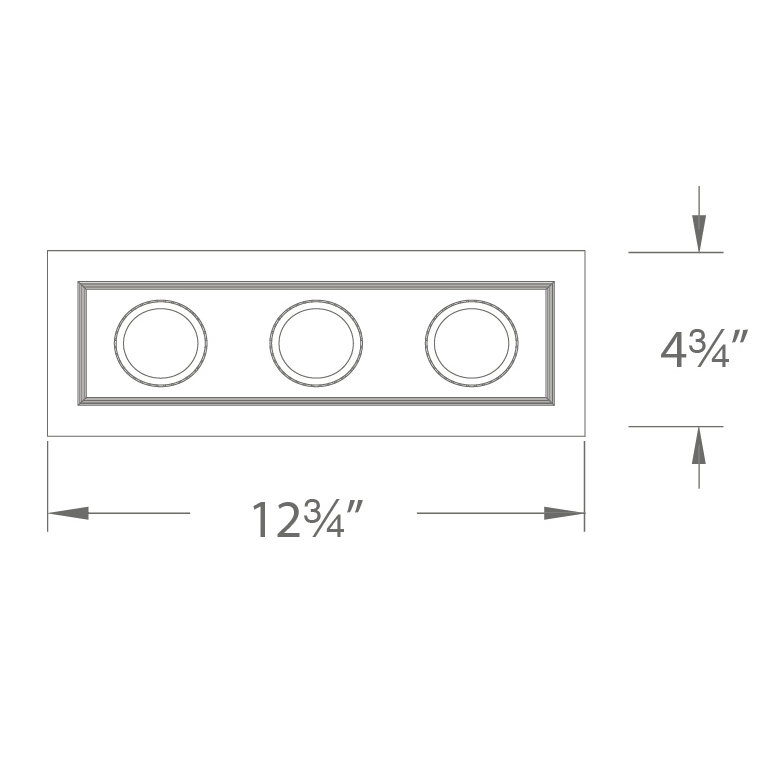

Trim Width

4.75'' W

Overall Product Weight

1.5 lb.

Trim Length

12.75'' L

Trim Size (Aperture)

12.75''
