Additional Features

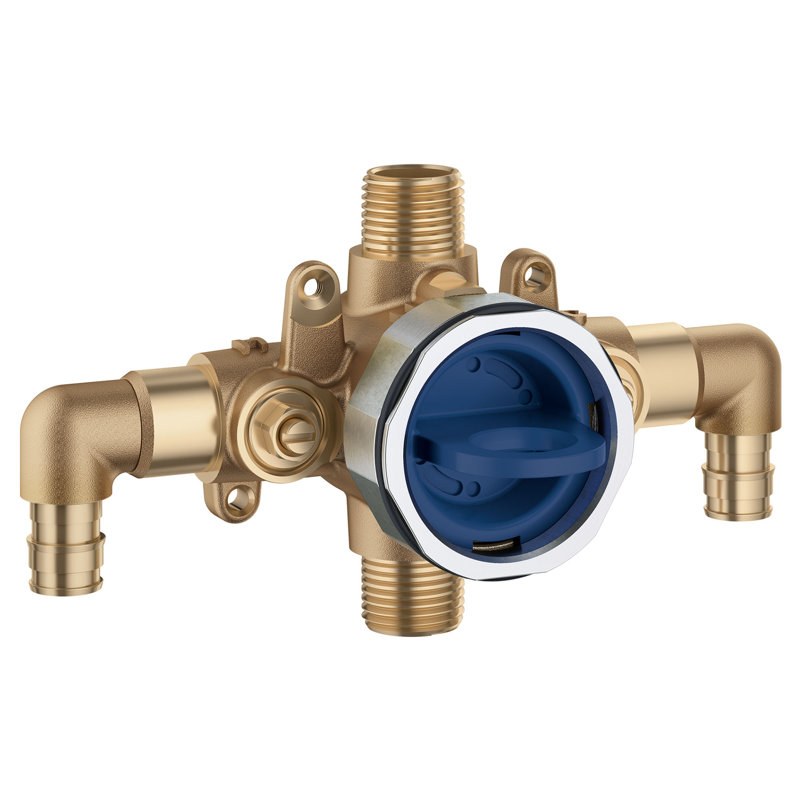

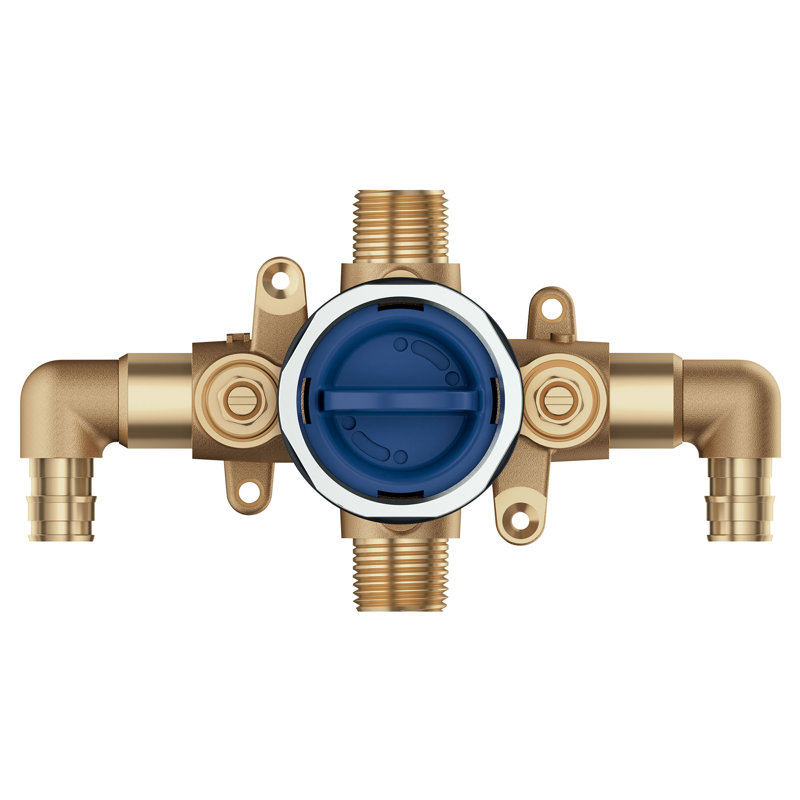

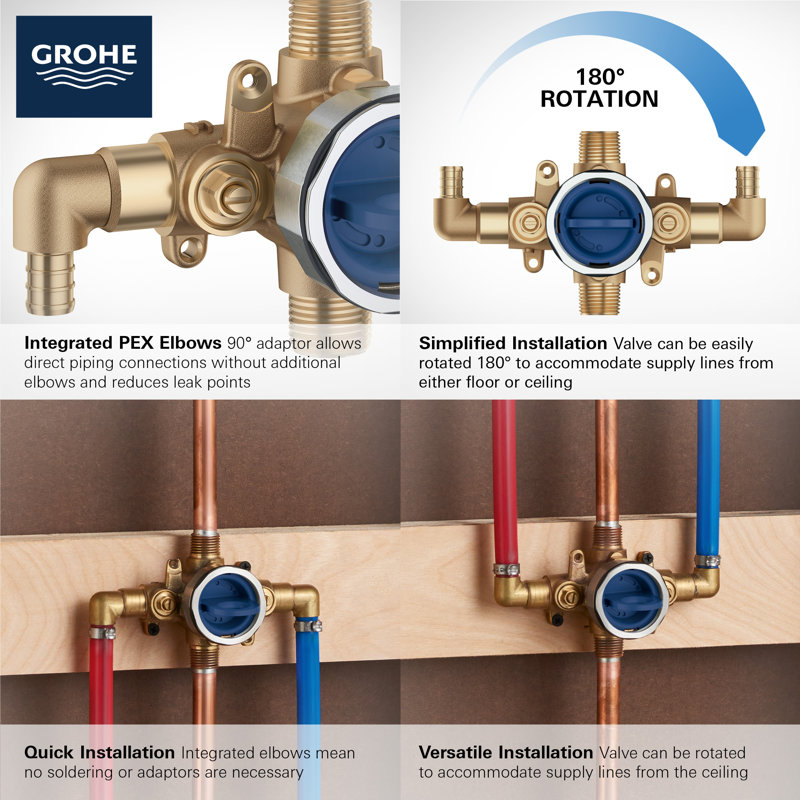

• PEX elbow connections for easy installation without adaptors, reducing leak points.

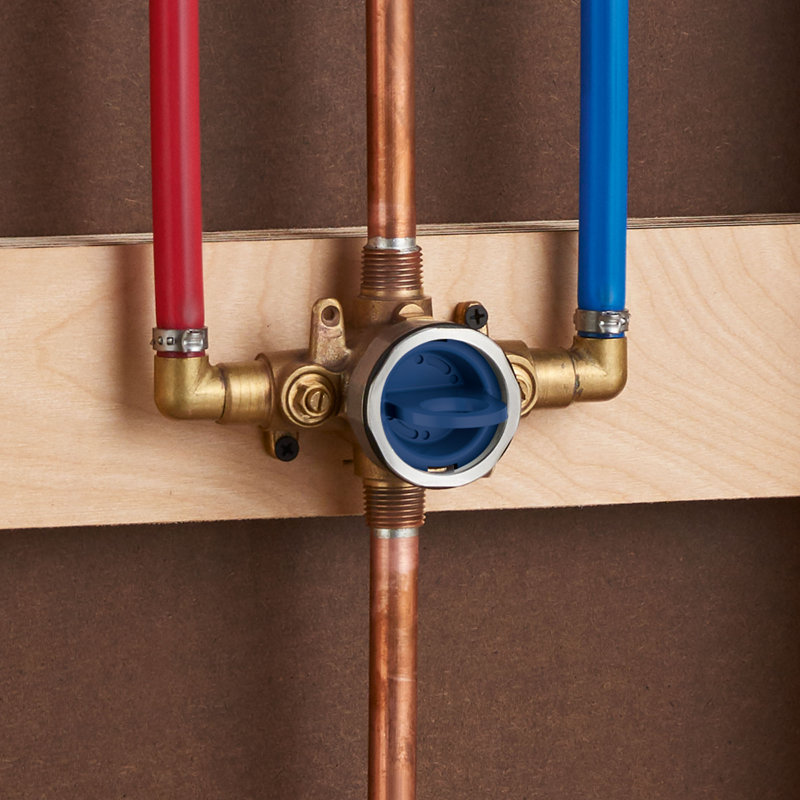

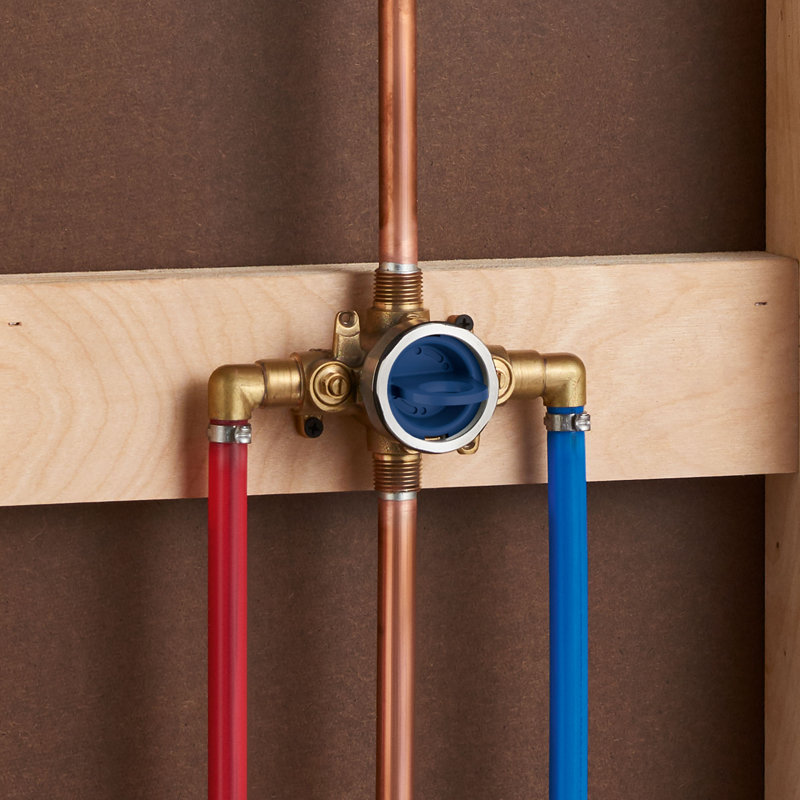

• The valve can be easily rotated 180° to accommodate supply lines from the floor or ceiling.
• Can be tested using a flush plug with air (200 psi) or water (300 psi)

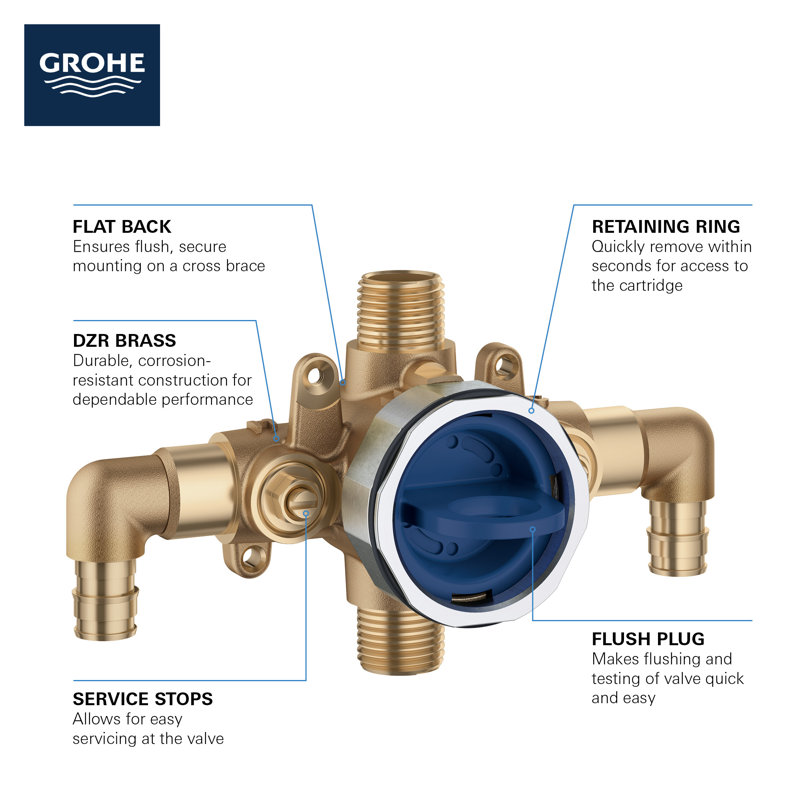

• Stainless steel retaining ring with flats secures flush plug and cartridge, eliminating the need for screws.
• A flat back allows the valve to be mounted flush against the cross brace for an easy and solid installation.
• DZR cast brass body is durable and corrosion-resistant even in harsh water conditions.
• The back-to-back capability allows hot and cold to be reversed quickly and easily.

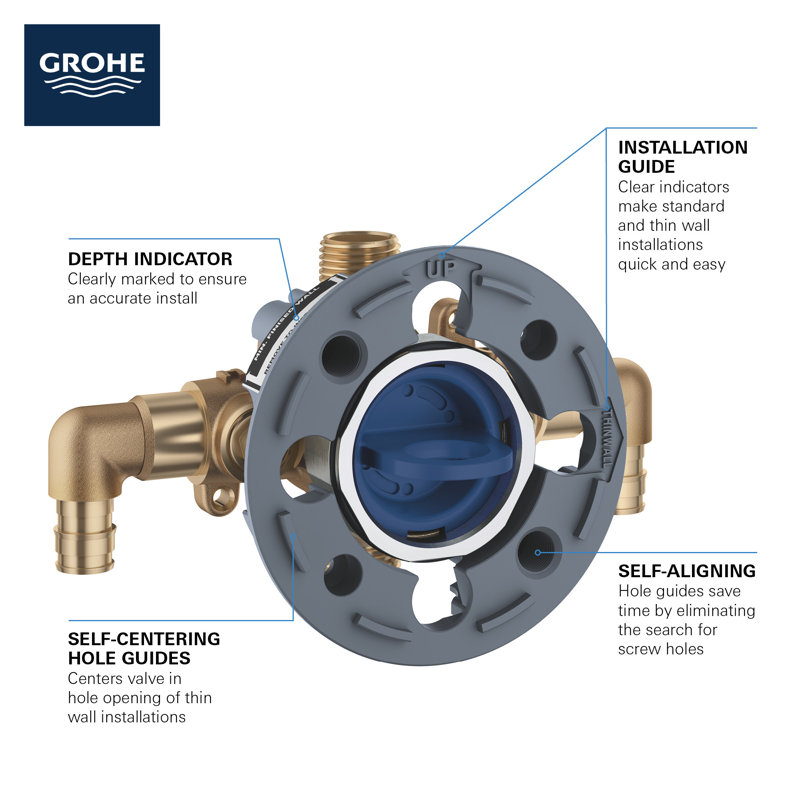

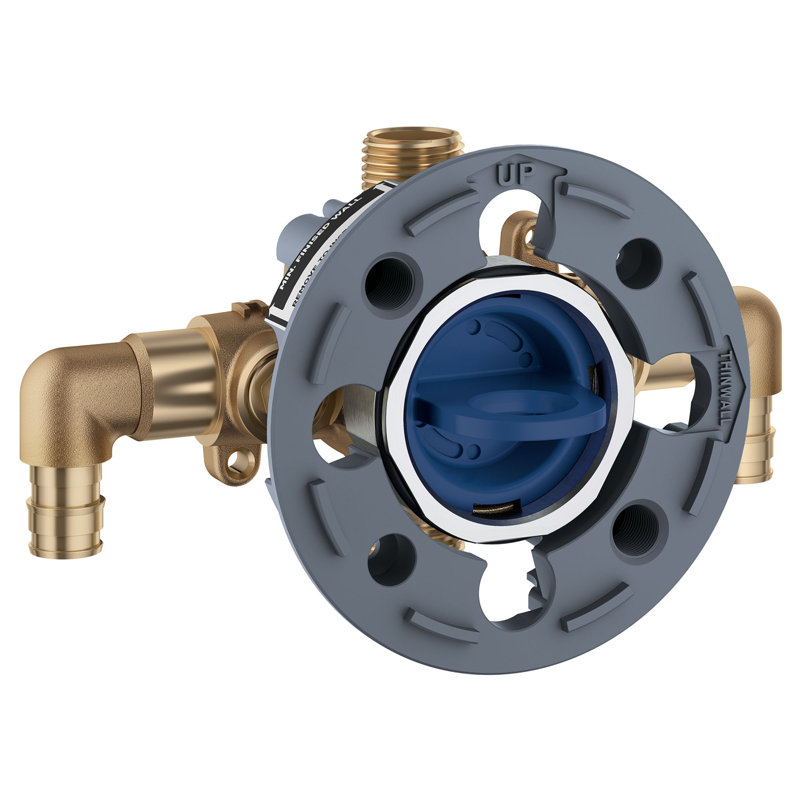

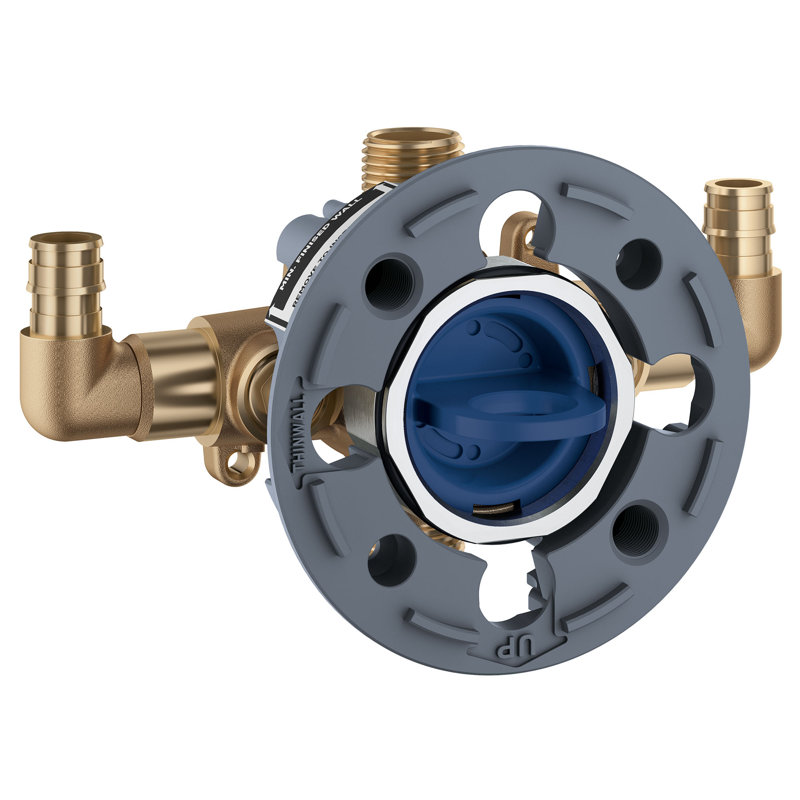

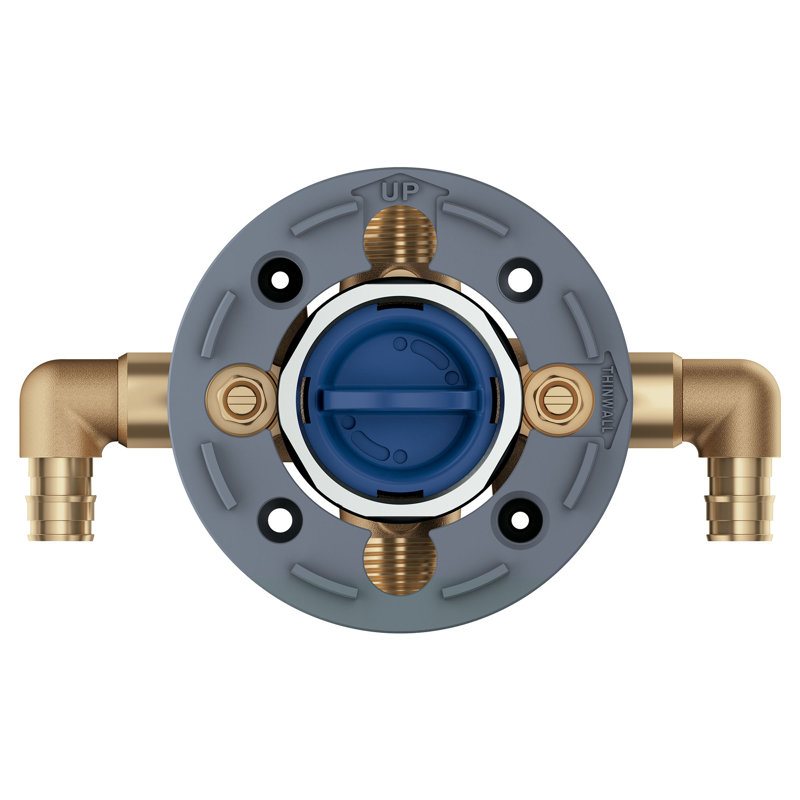

• An exclusive plaster guard is designed to protect the valve and act as a guide during the installation.

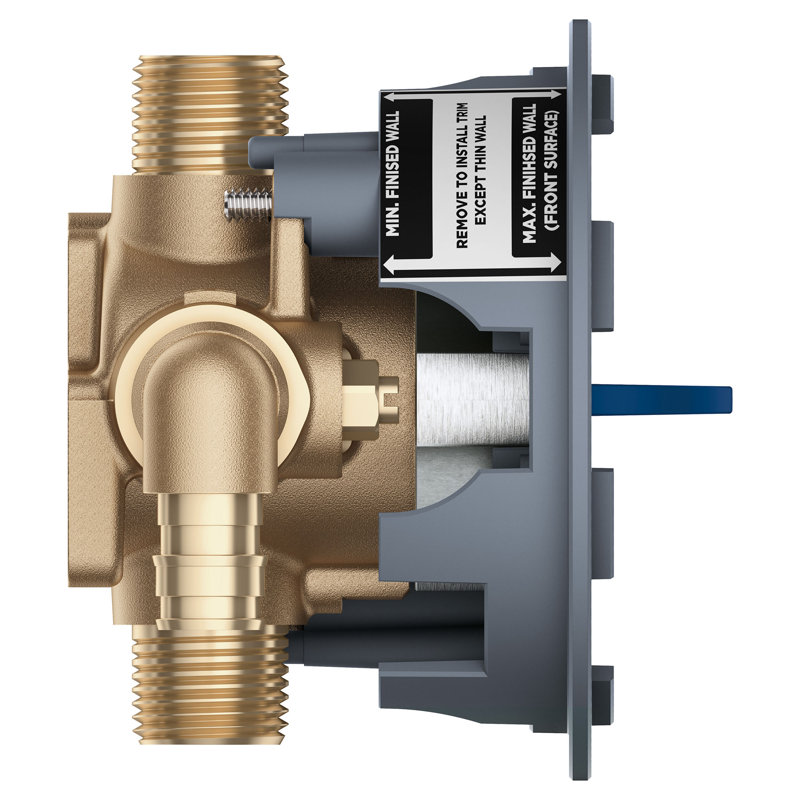

• Plaster guard can serve as mounting support for thin-wall installations
• Includes service stops for easy servicing at the valve

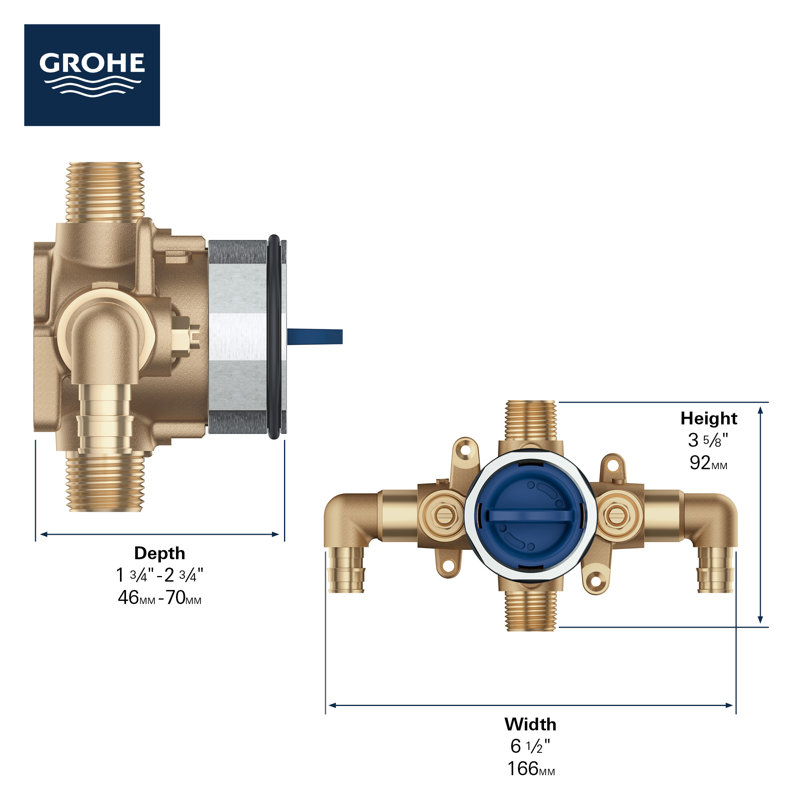

• Wide rough-in range from 1.75 to 2.75 in from the finished wall to the back of the valve.
