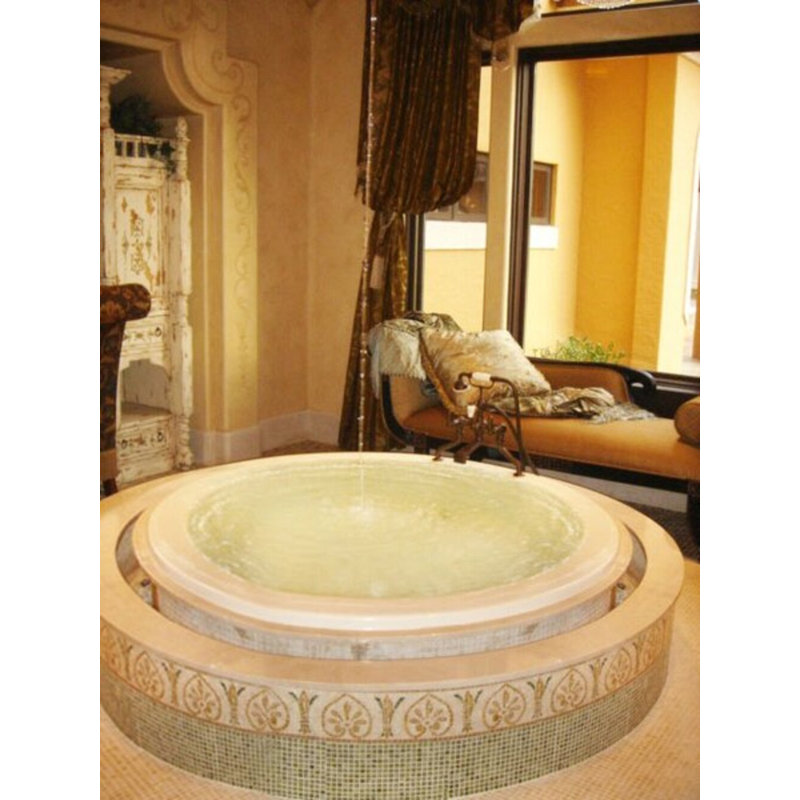

Hydro Systems Designer 60" x 60" Drop in Whirlpool Acrylic Bathtub

The Redondo is inspired by the Italian tradition of beauty, updated with contemporary comfort. Note the fine detailing, the lustrous finish, and (depending on the model) the six or eight standard jets that are strategically placed for maximum enjoyment. Because of its elegant circular proportions, this bath is a pleasure for you alone, or for as many as three persons. For those who want to make a statement of refined indulgence, the Redondo is the tub for you.

Specifications

Safety Listing(s)

UL Listed

Plumbing Material Performance Compliant

CSA B45.5 / IAPMO Z124 - Plastics - Acrylic, Fiberglass, Resin Composites

Features

Bath Therapy Type

Whirlpool

Product Type

Back to Wall

Overall Shape

Round

Material

Acrylic

Tank/Tub Capacity

80 gallons

Finish

Almond

Drain Finish

Polished Chrome

Pieces Included

Drain Assembly

Construction Features

Overflow Hole

Built-In Features

Heater

Safety Features

Slip Resistant

Overall Capacity

80 gallons

Warranty

Commercial Warranty

Yes

Warranty Length

Warranty length varies by part

Warranty

Limited Warranty

Overall Dimensions

20.25'' H X 60'' L

Soaking Depth - Top to Bottom

17.75'' D

Overall Product Weight

120 lb.

Overall Length from End to End

60'' L

Overall Height from Top to Bottom

20.25'' H

Overall Width from Front to Back

60'' W

Additional Features

Soft-touch electronic on/off control switch with a 30-minute integral timer.
Ozone sanitation system.
Anti vortex safety suction.
Automatic purge.
6 fully directional adjustable PVC jets.
CUL, UL, UPC, USPC, and IAPMO are listed.
2.25 HP single speed pump.
Acrylic models are finished in a 1/8” thick layer of deep lustrous acrylic.
Extra thick reinforced fiberglass.
Pre-wired pump on pump platform (standard pump location only).
Cablewaste and overflow.
2.25 h.p. pump standard / Cablewaste and overflow
Non-skid bottom.
Hydrozone.
Backrest slope: 31°; 36°
Integral E-Z level platform facilitates installation.
